Customized design electrical cabinet frame roll forming machine with welding for electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building,electrical instrument.
Electrical cabinet frame roll forming machine
Automaitc electric factory using cabinet frame roll forming machine with welding for electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building, control cabinetelectrical instruments etc.
Equipment for producing electric cabinet frame
1,Technical parameters (Item:YX42.5-42.5)
|1||MATERIAL||Type||Cold-rolled strip steel, galvanized sheet|
|Yield Strength (Mpa)||Q235|
|2||Forming product Width||42.5mm|
|3||Forming speed (m/min)||2-6m||Including welding|
|4||Forming main power (KW)||11 KW*2 pcs||FYR|
|5||Hydraulic power (KW)||18.5 KW||FYR|
Electronic control panel frame production line process
2 in 1 Uncoiler Straightening→servo feeder→punch → Guide device → roll forming machine → Roller welding →shear device (including knife)→ finished product rack
Layout as below
Cabinet frame drawing

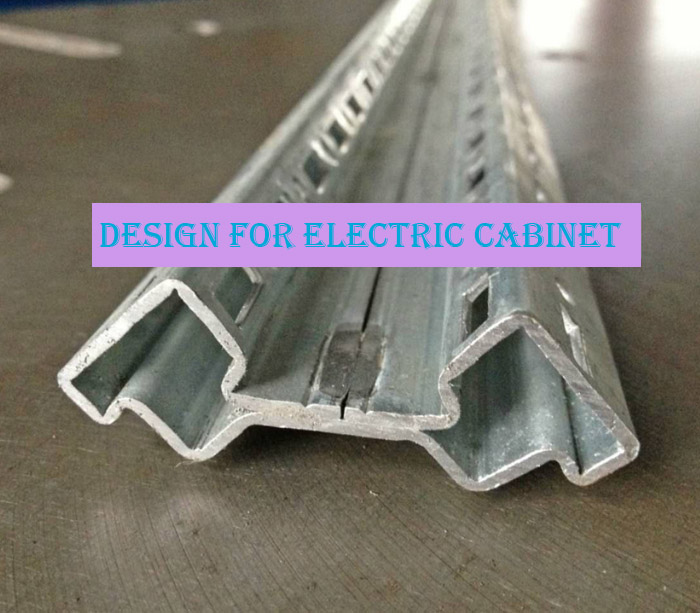

Section part cabinet 16 fold frame Drawing
As per electrical instrument manufacturers design optional B
Roll Forming machine list
2 in 1 Uncoiler straightener
1,Type Manual Expansion
1) Passive discharge
2) Coil weight：< 2T
3) Coil inner D.：φ450mm-φ530mm
4) Max. Width.400mm
5) Thickness .0.4-1.6mm
6) Straightener roller :7 pcs
3.1 Max. feeding width 400mm
3.2 Feeding thickess 0.4-1.6mm
3.3 Motor , 1.3ＫＷ(Yaskawa)
Hydraulic hole punchin system/Punch machine
3.1 Function：Hydraulic punch hole (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure：16MPa
3.4 Hydraulic station：18.5KW（ Hydraulic punch hole/shear use same station）
Main Forming machines
5.1 Forming Roller：40 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.25mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 2-8 m/min。
5.4 Roller material：GCr15，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：11KW*2pcs。
5.6 Main Roller ：￠75mm
5.7 Equipment base: 450 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Roll welder (Seam welder) in roll forming line
Flat collect rack
Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Touch screen: Siemens
Some components are Schneider brand devices.
Devices completed 16 fold cabinet frame prodution line
|3||Hydraulic machine/Punch machine||1||With mould|
|7||Follow Shear||1||Including knife|
|10||Box bending machine||1||With mould|
Cabinet frame machine accessories brand
|1||Motor & Reducer||Domestic brands|
|2||The main key bearing||Domestic brands|
|8||Hydraulic system||Domestic brands|
Guarantee of Quality
Superda guarantee cabinet frame roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.
Electrica cabinet frame roll forming machine advantage
1, Rittal control panel frame production line for producing 16 fold cabinet frame rack.
2, PLC control system, automatically and easy handle.
3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.
Model and Meaning
Customized design electrical cabinet frame roll forming machine with welding for producing Rittal control cabinet, electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building,electrical instrument.
Roll forming machine for production control panel rack
|Type||Cold-rolled strip steel, galvanized sheet|
|Sheet Tensile||Mpa||Q195, Q235|
|7||Roller Welding power||kw||160kw|
|8||Roll Forming power||kw||11kw*2 pcs|
