Cable tray roll forming machine manufacturer

Cable tray production line be used to produce cable tray . through exchange punching tooling to finish producing different specifications. One set of roller can make all specifications of cable tray. adjusting the width of roller to produce different width cable tray.

Product Description

Cable Tray Roll Forming Machine Manufacturer China


1, Cable tray machine for producing all kinds of cable tray.

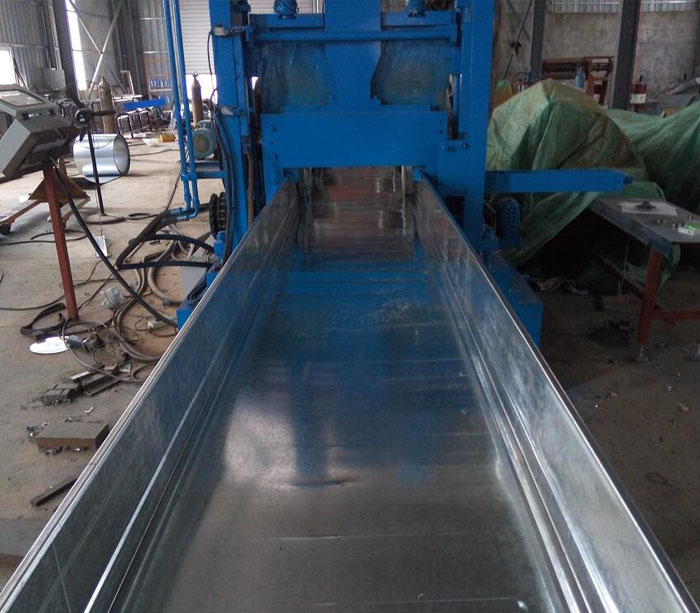

Cable tray roll forming machine manufacturer



2,Completed cable tray production line working flow ,

Decoiler — leveling — feeding — punching — conveying table — roll forming — finished product


3,Equipment consists

The equipment consist with de-coiler , leveling machine, servo feeding

machine, the punching machine (with punching moulds ),automatic conveying table , main forming machine, cutting device, collection table .PLC control system


4,Main technical parameter of production line ,

material : GI steel sheet, low carbon steel.

the thickness of the steel sheet , 0.8-2.0mm

inner diameter of coil , Φ508mm

line speed, 4-6m/min ( adjustable)


5. The characteristic of the machine

5.1 Automatic de-coiler ,

type : cantilever drumming type

functional and structural features,

be used to support and expansion steel coiler , section steel welding fuselage. it is easy to operate.

technical parameters

    material inner diameter : φ508mm

    range of inner diameter : ф450-550

    maximum outer diameter: φ1200mm

    load capacity: ≤ 5T


Cable tray roll forming machine manufacturer

5.2 Leveling machine :

type : nine rollers active leveling machine

functional and structural characteristics: leveling steel strip. Consist of pinch roller and leveling rollers, pinch rollers can be individually adjusted, upper leveling roller adopt overall structure, and establish two adjustment points on before and after, to form a certain angle, easy to improve the quality of leveling .

leveling roll is GCr15 high-frequency hardening, the hardness can reach HRC45-55.

technical parameters:

the number of leveling rollers: 9 rolls (up4/down5),  2 pinch rolls

motor power: 5.5KW


Cable Tray Machine


5.3 Correcting table

type : roller supporting , correcting

functions and Structure: correcting and with steel. Correcting device mainly consists of a pneumatic Prime bridge, roller, vertical roll-oriented composition. Guide wheels can be easily to adjust to different width. Galvanized rollers is beautiful and flexible.



5.4 Servo feeding machine

F  type : servo feeding

F  functions and Structure: Pinch and be with steel to the press machine. Polyurethane roller ensure that the feeding force. Feeding  each error of feeding be controlled in rang of ± 0.15mm. Compared with the servo Clamp, feed length setting is more flexible, adapt to a wider range. This feeding device is more suitable for wide material , can effectively improve the feeding accuracy. Servo motor, measuring devices, digital control system are the imported components.

technical parameters:

maximum number of feeding: 30 ~ 40 times / min (adjustable)

feeding step: 100MM / step (adjustable).



5.10 Forming machine :

type: double cantilever gear drive, width adjustable universal forming machine and the overall mobile, fast (waist height and width) exchange specifications.

function and structure: sheet metal is rolled form by 20 stand rolls, gradually into finished cable tray. Consist of the speed AC motor, reducer, high-precision linear guides, left and right gear box, lateral adjustment mechanism, the roller group composition. A set of rollers to complete all the specifications of the cable tray, adjusting the position of roller frame to achieve replacement of specification .

technical parameters:

the number of horizontal roll stand: about 20

machine shaft: (specifically adjusted according to actual situation)

the level of roller distance: about 350-550mm

motor power: 22.5KW

line speed: 10-15m/min


Cable tray roll forming machine manufacturer


5.11 Collection table

type: Finished cable tray arrive collection table, worker will collect products , non-powered roller.

function and structure: consist of section steel (square pipe), no power roller assembly, welding, play a role in supporting finished product ,can adapt 8-meter finished product.



5.12 Electrical control system

the whole line adopt imported PLC control , touch screen be used for human-machine interface,  achieving the interaction between man and PLC.


Cable Tray Machine


6, Cable tray production line layout.



Cable tray with hole, production line will need hydraulic punch device.

If cable tray without hole, production line not need the hydrauic punch process.


Cable tray roll forming machine manufacturer

Product Features

Cable tay roll forming machine advantage


1, Cable tray production line for producing and adjust different width and height,cable tray width from 100-600mm, and height from 50-100mm.

2, PLC control system, automatically and easy handle.

3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.



Model and Meaning

Model, YX96-480


Cable tray machine is the equipment for production cable tray.

What is cable tray?

The cable tray is divided into a trough type & tray type & ladder type. Cable tray is composed of a bracket, a support arm and a mounting attachment. It can be erected independently, or it can be laid on various building (structure) and pipe rack brackets. It features simple structure, beautiful appearance, flexible configuration and convenient maintenance. All parts need to be galvanized and installed in buildings. If the bridge is outside the open sea or belongs to the corroded area, the material must have the characteristics of anti-corrosion, moisture resistance, good adhesion and high impact strength.

Technical Parameters

Cable tray roll forming machine parameter data


Part two: Forming machine
Material Thickness0.6~2.0MM
Roller MaterialGCr15
Shaft Material45# steel
Forming Speed15-20m/min
Control SystemPLC Control( Delta brand)
Total Power15kw
Rated VoltageCustomized
