Manifolds CNC Continuous Laser Welder

CNC Continuous Laser Welding Machine for Manifolds delivers precise, high-speed welding for exhaust, drainage, and HVAC manifolds, ensuring durability and efficiency.

Inquire Now Next Product

Product Description

Manifolds are mainly used in heating, refrigeration and hot water systems. Specific application scenarios include:

In underfloor heating (UFH) systems, they distribute hot water to various circuits and regulate room temperature.

In central air-conditioning water systems, they distribute cold/hot water to various areas.

In large building hot water supply systems, they balance water pressure and flow in each branch.

Their core function is to split, collect and control fluids, ensuring efficient operation of the system.

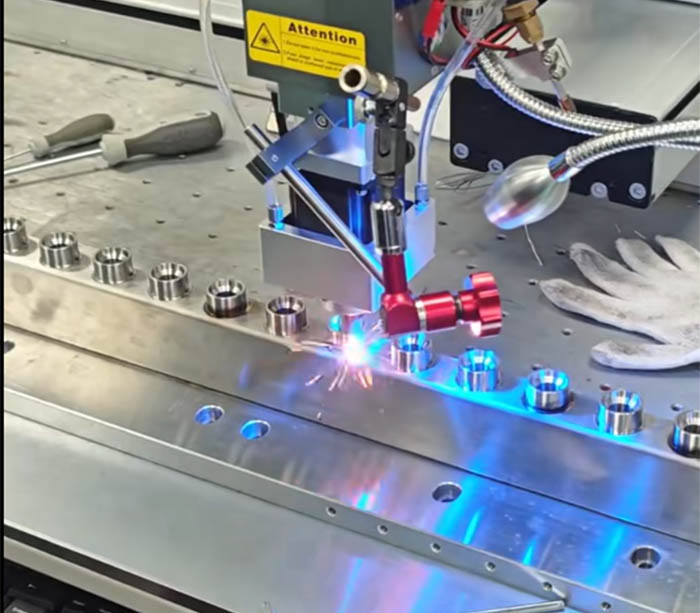

Manifolds CNC Continuous Laser Welder

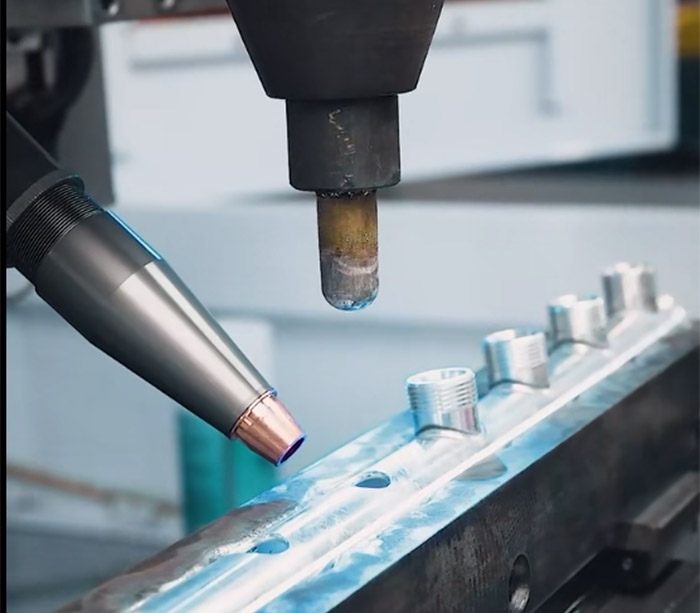

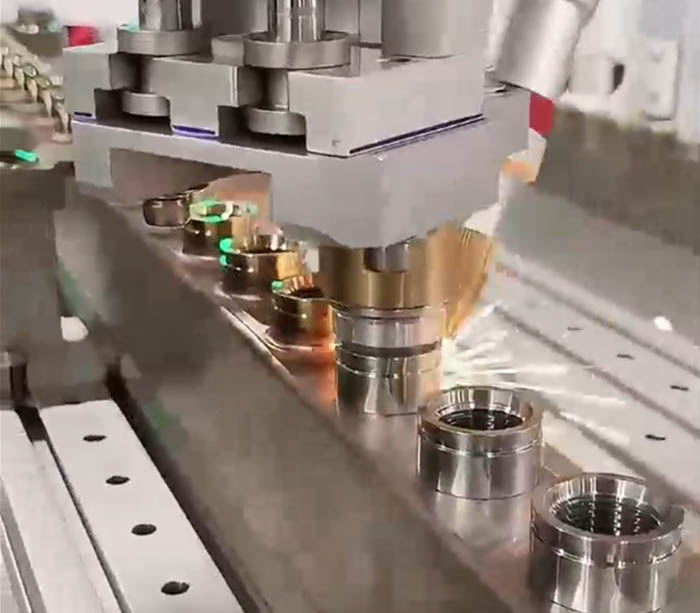

The coaxial rotary welded joint is well-suited for this type of tubular welding.

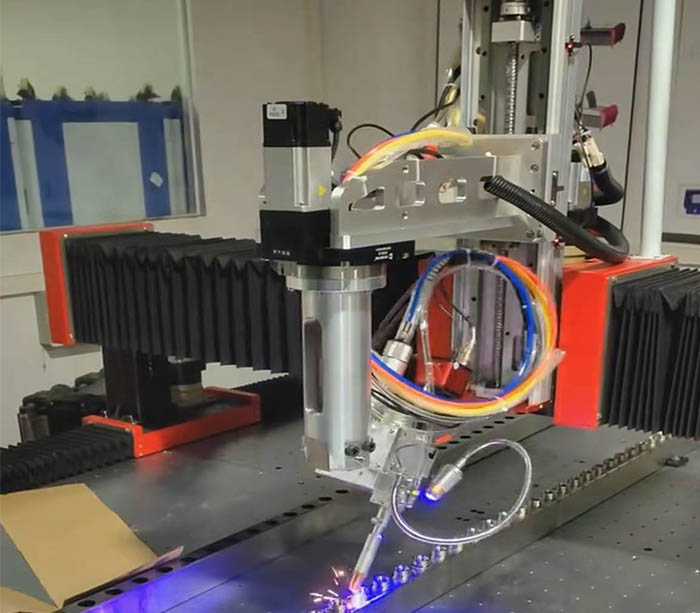

A desktop system equipped with a rotating fixture can ensure precise welding on all surfaces.

By using laser welding, full penetration can be achieved while maintaining a smooth,

seamless appearance without deformation.

Parameter	Specification
Laser Power	2000W
Laser Type	Continuous Laser: 1064 nm
Spot Size	0.2–30 mm
Spot Adjustment Range	0.1–0.3 mm
Output Focal Length	120 mm
Pulse Width	0.5–25 ms
Pulse Frequency	< 50 Hz
Cooling Method	Water Cooling
Positioning Method	CCD 360° Rotatable
Shielding Gas	Argon
Workbench	6-Axis Linkage, Automatic with Rotary Fixture
Worktable Load	< 200 KG
Power Supply	380V / 50Hz
Laser Output Stability	< ±10%
Pulse Width (Adjustable)	0.1–20 ms / Stepless Adjustment
Pulse Frequency (Adjustable)	1.0–150 Hz / Continuous Adjustment
Output Current	40–350 A
Travel Range	1300 × 400 × 300 mm
