Export Electrical Box Machine & Distribution Board Enclosure Machine For 150-350mm Different Depth, Electrical Boxes Length and Width 300-1200mm.
Export Oversea Electrical Box Machine Form Making Different Size Distribution Board Enclosure.
Produced wall mount box dimension, height adjustable 300-1200mm, depth adjustable 150-350mm.
Electrical box machine technical parameters
cold-roll strip,galvanized steel strip
1.0-1.5mm（base on 1.5mm design, when T.1mm effect alittle not good as 1.5mm）
L≤1000mm，Bend no more than 1mm；Deflection no more than 2mm
As per design
Electrical distribution board roll forming machine production line process
Uncoiler→ Straightening→Servo feeder→Hydraulic device→ Guide device → Roll forming machine →Bending device
Hydraulic punch with mould and sensor
Electrical box gap punch
Distribution board panel forming process tooling

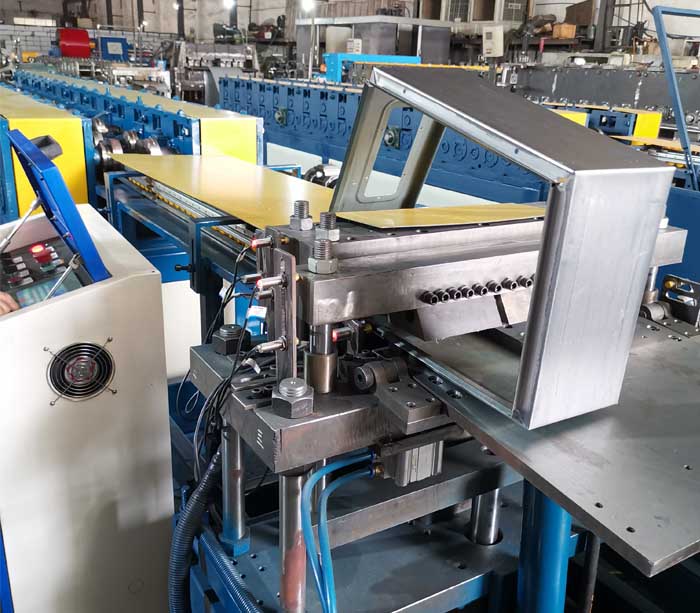

Electrical Box Machine Bending Tooling
Distribution box production line technology explaination
This production line is equipment for production of distribution boxes. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the bending part at a linear speed of 0-13m, the box is cut and bent as required, and then manually packed away. This production line produces 2-3 enclosures per minute. the production box quantity speed according to different product specifications
2. Forming mainframe: The mainframe base of this production line is welded with 100 * 100 * 3MM square tubes, the frame is integrated with a fixed archway, the side plates are made of 25mm steel plates, and the supporting parts are made of high-quality Taiwan bearings. Twisting up and down adjustment, the host has good rigidity and stable structure.
B: Roller (roller staiton): 16 sets of roller forming, high-quality Gr12 mold steel, HRC up to 58 ~ 60º are processed by precision CNC machine tools, precision is 6 ~ 7, surface roughness is above 0.8, no scratches on the surface.
Egypt Electrical Box Machine main technical parameters
1.Details of accessory brand
Programmable controller (PLC)
Low-voltage circuit breaker
Hydraulic Solenoid Valve
Shun Xin, Taiwan
a. Applicable materials: cold rolled coil, galvanized coil
b. Material quality: Domestic GB standard
c. Tensile strength: δb≤780Mpa (Max.)
d. Yield strength: δs≤510Mpa (Max.)
e. Material thickness: 1.0-1.5mm
f. Material width: 200-450mm (Max.)
g. Inner diameter of steel coil: Φ360mm-Φ510mm
h. Outside diameter of steel coil: Φ1250 （Max.）
i. Steel coil weight: 3 t (Max.)
a. Number of forming staion: 16 sets of roller
b. Spindle specification: Ø48mm 40Gr quenching and tempering
c. Roller material: Gr12 mold steel heat treatment
d. Integral archway: precision machined from 25mm steel plate, the hole distance error is less than 0.1mm
e. Base plate thickness: 20mm
4, forming ability
a. Outside diameter of coil: Φ1250mm (Max.)
b. Material forming thickness: 1.0-1.5mm
c. Product width 160mm-400mm adjustable
5.Speed parameters of forming unit
a. Linear speed 0-13m / min
b. Acceleration time ＜ 30 seconds
6, Forming accuracy
a. Shear length tolerance: ≤ ± 0.5mm / m
b. Width tolerance: ≤ ± 0.5mm
c. Sickle curve: ≤2mm / m
d. Burr: ≤0.1mm (new blade cutting ordinary carbon steel plate with reasonable clearance)
e. Height tolerance: ≤ ± 0.5mm
The above tolerances are based on the first-grade steel coils with flat and edgeless waves.
7.Other equipment parameters
a. Power supply: 380V / 50HZ / 3PH (Or Custmized)
b. Installed capacity: about 32Kw
c. Forming speed: 0-13m / min
d. Cutting method: forming then cutting
e. Driving motor:
Straightener machine motor 2.2KW
Hydraulic punching 15kw,bending and cutting 5.5KW
Forming host motor 7.5KW
Servo motor 2KW
f. Floor area (approximately): length 30m × width 3m
(Roll Forming 7mX1.5m)
g. Production line direction: from left to right
(facing the unit from the operation table).
h. Equipment color: (Customer choice)
i. Unit equipment design can meet 12 hours of continuous production
j. Operating environment:
1: power supply voltage: 380V ± 10% / three-phase four-wire, frequency: 50HZ total power: about 32KW
2: Ambient temperature: 0-40 ° C, relative humidity: 60-95% RH.
Power distribution box production line devices：
2kw Mitsubishi motor
Servo Hydraulic machine
Hydraulic bending cutting
Guarantee of Quality
Superda guarantee size adjustable electrical box machine design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.
Automatic metal enclosure roll forming machine advantage
1, High efficiency production line, one minute can producing 2-3pcs
2, PLC control system, automatically and easy handle.
3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.
Different distribution board dimensions are available. below photo box size L.300*W.400mm*d.150mm
