MCB Channel DIN Rail Top Hat Fabricating Machine

Customized MCB Channel DIN Rail Top Hat Fabricating Machine for Circuit Breaker Rail & Control Panel Board Mounting.

Product Description

Circuit Breaker & Control Panel Board Using Slooted Top Hat DIN Rail mounting roll forming machine manufacturer

Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.


YX7.5-35  Servo Motor Roll Forming Machine List

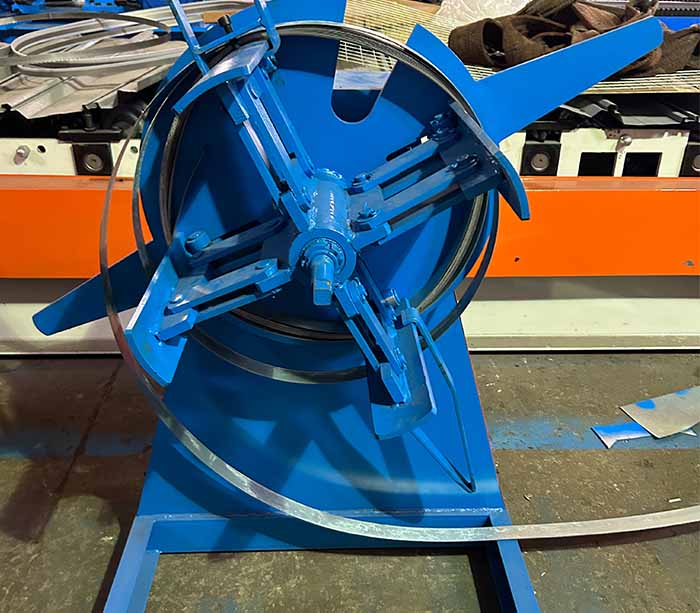

Uncoiler

1) Type,Manual & not power

2) Parameter

1)Passive, discharge

2) Coil weight,<   1T

3)Coil inner D., φ470mm-φ530mm

4)Max. Width., 200mm

5)   Thickness <1.6mm

MCB Channel DIN Rail Top Hat Fabricating Machine

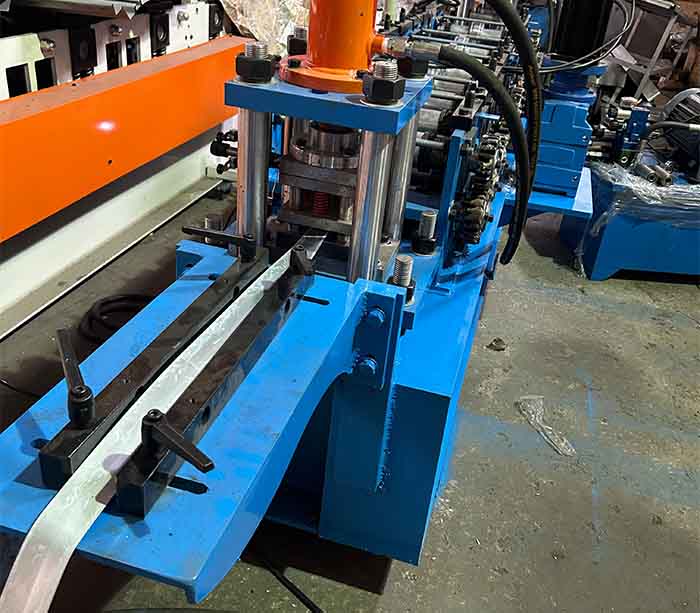

Guide device



MCB channel DIN rail roll forming system data


5.1  Forming Roller:8 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 4-6 m/min。

5.4  Roller material:#45,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:3KW。
5.6  Main Roller :¢65mm,45 #。
5.7  Equipment base: 40# H type using welded steel plate.
5.8  Transmission: Gear
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

MCB Channel DIN Rail Top Hat Fabricating Machine


Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Din Rail Roll Forming Machine Cable Layout

MCB Channel DIN Rail Top Hat Fabricating Machine

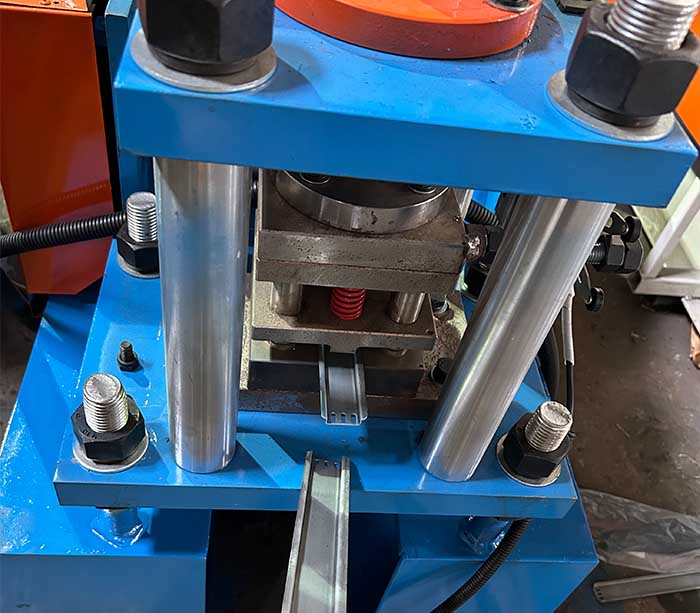

Punch hole

Stop punching, 1 set of mold, punching length 400MM.

The material of the punching die is Cr12, HRC58-62°.

MCB Channel DIN Rail Top Hat Fabricating Machine


Forming and shearing:
Cutting method: hydraulic cutting (blanking) stop cutting.
Blade material: Cr12, quenched, the hardness can reach HRC60 degrees.
Hydraulic system working pressure: 16Mpa

Product Features

Guarantee of Quality

Superda guarantee Channel roll former line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth. Formed din rail can be fix well with switch.

Channel din rail produciton equipment advantage

1, Roll former production line for producing steel switch rail.

2, PLC control system, automatically and easy handle.

3, Good quality roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.

Youtube Video Customized MCB Panel Production Shorts

MCB Channel DIN Rail Top Hat Fabricating Machine

Model and Meaning

Item YX7.5-35

Equipment for production switch din rail.

Standard din rail profiles very easy installation in wall mounted concealed switch, circuit breaker, chopper.

MCB Channel DIN Rail Top Hat Fabricating Machine



Technical Parameters

Din Rail Channel Machine List of Main Accessories Parts Brand

No.

Name

Brand

1

Motor reducer

Domestic brand

2

Main key bearings

Domestic brand

3

Frequency converter

Shilin

4

PLC system

Delta

5

Low-voltage electrical appliances

Schneider

6

Encoder

Omron

7

touch screen

Weinview

8

Hydraulic system

Domestic brand


Din Rail Channel Production Devices Including

No.

Machine name

QTY

REMARK

1

Uncoiler

1


2

Guider device

1


3

Forming machine

1


4

Punch Hydraulic

1


5

Cutting device

1


6

Control system

1



Din Rail Channel Production Line Process

Uncoiler →roll forming machine →punching hole device  → hydraulic shear device (including knife)



Slotted Din Rail Channel Roll Forming Machine For Sale
