Galvanized Corrugated Tile Gusset Plate Buckle Roof Sheet Roll Forming Machine

Superda customized galvanized corrugated tile gusset plate buckle roof sheet forming machine manufacturer China for pitched roof & wall structure steel.

Product Description

Good quality roofing wall galvanized corrugated gusset plate buckle roof sheet roll forming machine


Ⅰ,Corrugated gusset profiles forming machine for wave panel technology detail



1,Technical parameters


No.ITEMPARAMETERREMARK
1MATERIALTypeCold-rolled strip steel, galvanized sheet
T.(mm)0.8-1.2mm
Yield Strength (Mpa)Q235
2Forming product   Width350mm
3Forming speed   (m/min)8-25mIncluding hole
4  (KW)7.5 KWFYR
5Hydraulic power   (KW)4 KWFYR
6Collect Rack6mFYR
7Voltage AC380V,50Hz,3PCustomized


Ⅱ, Roofing gusset corrugated tile machine process

Uncoiler →Guide device → roll forming machine →shear device (including knife)→ finished product rack


Galvanized sheet wave roofing panel roll forming machine layout as below


Floor Deck Machine


Ⅲ, Roll Forming machine list


(Ⅰ), Uncoiler

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight:<   5T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.1300mm

5) Thickness .0.4-1.8mm

Gusset Plate Buckle Roof Sheet Roll Forming Machine



(Ⅱ),Guide device


(Ⅲ), Gusset plate forming line main roller system parameter

3.1  Forming Roller:12 stations,and add Rub-roll, To make sure the surface profile no scratches.

3.2  Side Panel:T.30mm ,A3 steel   Heavy duty 。

3.3  Rolling speeding: 8-25 m/min。

3.4  Roller material:#45 Steel,overall quenching, hardness HRC56-62 ℃.
3.5  Motor power:7.5KW。
3.6  Main Roller :¢90mm,45 #。
3.7  Equipment base: 45 # H type using welded steel plate.
3.8  Transmission: chain drive.
3.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Gusset Plate Buckle Roof Sheet Roll Forming Machine

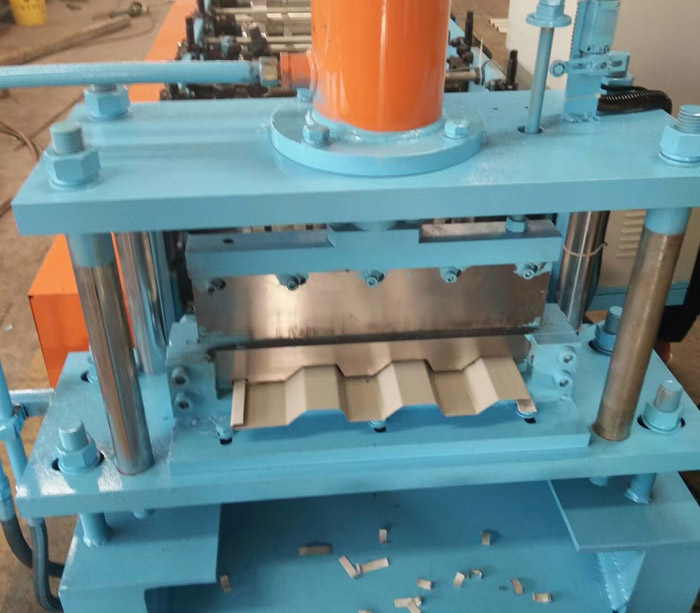

(Ⅳ) Hydraulic shear for cutting wave panel



(Ⅴ)Collect Rack

Collect Rack can do automatic flat rack or manual rack

Below photo is automatic collect ra


(Ⅵ),Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

(Ⅶ)Machinery main components of the brand

PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.


(Ⅷ),Devices completed galvanized corrugated sheet roof panel prodution line


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Guide device1
3Forming machine1
4Follow Shear1Including knife
5Collect rack1
6Control system1


Ⅵ, Corrugated machine accessories brand

No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands



Product Features

Guarantee of Quality

Superda guarantee steel corrugated gusset plate & buckle panel forming machine design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.

Gusset Plate Buckle Roof Sheet Roll Forming Machine

The advantage of corrugated wave panel

1, corrosion resistance, aging resistance, long service life >25 years

The material itself has strong corrosion resistance and even no direct chemical reaction. Therefore, it is more suitable for special environments such as beaches and chemical plants.

2, the performance of silencer and heat insulation is particularly prominent


Model and Meaning

Corrugated steel gusset plate combined with current outdoor advertising inkjet signboard, due to aging fast (fading), easy to damage (not resistant to wind), complicated installation and other shortcomings, aluminum-plastic panel decoration, acrylic billboards due to high cost, long production time, easy The deformation is not applied by the majority of customers. This galvanized steel product is quick and easy to install, just fix the special keel on the billboard frame, and then snap it into the corrugated plate.


Buckle panel board are rich in color and unique in shape, and can be decorated with various styles of buildings.

Gusset Plate Buckle Roof Sheet Roll Forming Machine

Technical Parameters

Buckle panel shape and size all can be customized.


Various wave panel drawing all can be made by roll forming line


350mm gusset corrugaged tile panel photo

Gusset Plate Buckle Roof Sheet Roll Forming Machine
