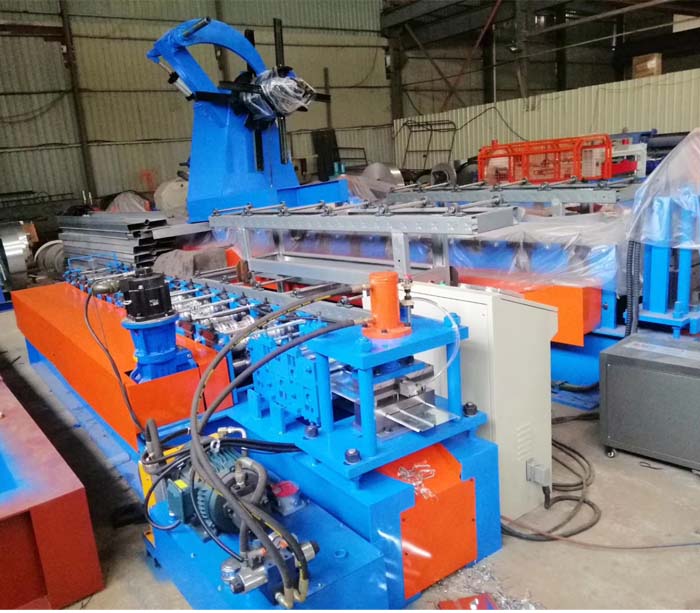

Fire Damper Roll Forming Machine

Galvanized steel fire damper blade roll forming machine & fire valve plate & fire damper enclosure production line.

Product Description

Galvanized steel fire damper blade forming machine manufacturer

Process

Uncoiler straightener 2 in 1 →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack


Metal fire valve blade forming machine list


 2 in 1 Uncoiler   straightener

1、 Type:Manual Expansion

2、Parameter

1)Passive   discharge

2) Coil weight:<   2T

3)Coil inner D.:φ450mm-φ530mm

4)Max. Width.200mm

5)   Thickness .0.4-1.6mm

6)   Straightener roller :7 pcs

8)   Power.1.5kw


Servo Feeder
3.1 Max. feeding width:200mm
3.2  Feeding thickess: 0.4-1.6mm

3.3  Motor , 0.85KW(Yaskawa)


 Guide device



Fire damper forming system data


5.1  Forming Roller:12 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 5-8 m/min。

5.4  Roller material:#45,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:7.5KW。
5.6  Main Roller :¢65mm,45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Fire Damper Roll Forming Machine


Flat collect rack

Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens


Some components are Schneider brand devices.


Steel Roll forming production line including


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Servo Feeder1
4Guide device1
5Forming machine1
6Hydraulic   machine1With mould
7Follow Shear1Including knife
8Collect rack1
9Control system1


Metal forming machine accessories brand

No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands


Product Features

Smoke exhaust fire damper is generally installed on the pipe of the mechanical smoke exhaust system. It is usually open. In the event of a fire, it will be closed when the temperature of the smoke in the exhaust pipe reaches 280 degrees, and meet the requirements of smoke leakage and fire integrity within a certain period of time. , Plays a role in preventing smoke and fire. The main materials of smoke exhaust fire damper: carbon steel, galvanized sheet, stainless steel.

Product advantages of smoke exhaust fire damper: strong anti-corrosion performance, long service life (material is stainless steel); low air leakage, good airtight performance; electric opening consumes small current; flexible driving, accurate feedback and interlocking signals.

Types of smoke exhaust fire damper: normally closed smoke exhaust fire damper, remote control smoke exhaust fire damper (steel rope control type), normally open smoke exhaust fire damper, automatic reset smoke exhaust fire damper.

Fire Damper Roll Forming Machine
