China manfuacturing heavy duty storage rack shelf metal forming machine with hole punch for warehouse steel shelves, span shelving unit, pallet rack shelf, muscle rack

Product Description

Good quality heavy duty storage rack shelf metal forming machine for rack upright post with CE

Roll forming machine for production shelves beam, shelf panel, rack beam.


Ⅰ,Formed Steel Shelving Unit Rack

Storage Rack Shelf Metal Forming Machine

Ⅱ, Rack shelf beam production line process for upright post

Uncoiler straightener 2 in 1 →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack


Layout as below


Rack shelf roll forming machine

Ⅲ, Customized rack upright post drawing


Storage Rack Shelf Metal Forming Machine

Ⅲ, Machines List


(Ⅰ), 2 in 1 Uncoiler   straightener

1、 Type:Manual Expansion

2、Parameter

1)Passive   discharge

2) Coil weight:<   2T

3)Coil inner D.:φ450mm-φ530mm

4)Max. Width.200mm

5)   Thickness .0.4-1.6mm

6)   Straightener roller :7 pcs

8)   Power.1.5kw



(Ⅱ),Servo Feeder
3.1 Max. feeding width:200mm
       3.2  Feeding thickess: 0.4-1.6mm

       3. 3  Motor , 0.85KW(Yaskawa)

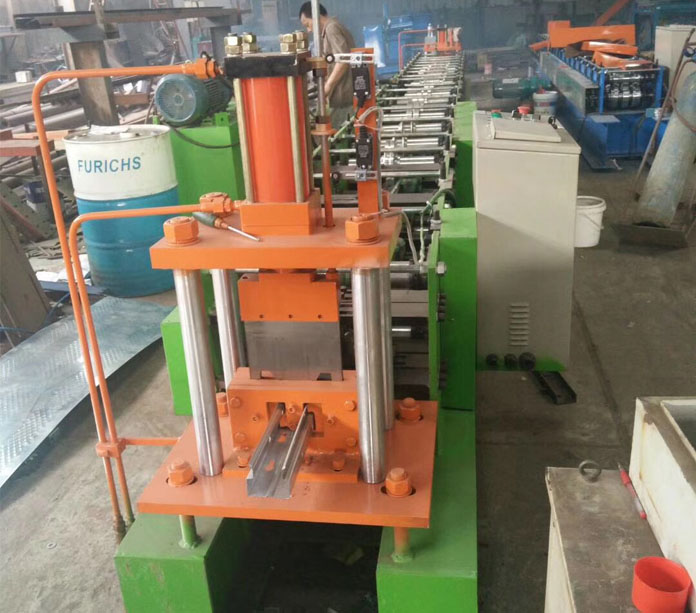

(Ⅲ), Hydraulic hole punching system

3.1 Function:Hydraulic punch breach
3.2  Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure:16MPa
3.4 Hydraulic station:15KW( Hydraulic punch hole/shear use same station)



(Ⅳ) Guide device



(Ⅴ)Main Forming machines  (for panel width 36mm)


5.1  Forming Roller:18 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 2-8 m/min。

5.4  Roller material:#45,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:7.5KW。
5.6  Main Roller :¢65mm,45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.


Storage Rack Shelf Metal Forming Machine



(Ⅵ),Flat collect rack


(Ⅷ),Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens


Some components are Schneider brand devices.



Ⅴ,Devices completed heavy duty rack shelf production line


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Servo Feeder1
3Hydraulic   machine1With mould
4Guide device1
5Forming machine1
6Hydraulic   machine1With mould (2 sets)
7Follow Shear1Including knife
8Collect rack1
9Control system1


Ⅵ, Storage rack machine accessories brand


No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands



Product Features

Guarantee of Quality

Superda guarantee rack shelf beam roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth. Formed rack beam can be fix well with rack stud parts.


Storage Rack Shelf Metal Forming Machine


Rack shelf beam produciton equipment advantage

1, Rack shelf production line for producing light storage shelves, medium storage shelves, heavy storage shelves.

2, PLC control system, automatically and easy handle.

3, Good quality roller with quench process, hardness reach HRC58-62 ℃.

4,Tracking cutting system with Cr12 Cutting blade.



Model and Meaning

Item YX90-68

Equipment for production all kinds of storage rack shelf unit.

Different types of rack shelves have different characteristics, a good shelves have the characteristics of perfect assembly, large carrying capacity and strong stability. The shelf material is made of cold roll steel. The gallery-style shelves are designed to store a large number of similar pallet goods, also called channelless shelves. Pallet shelves are commonly used in places where storage space is expensive, such as frozen warehouses. Suitable for storing large quantities, small variety of goods, batch operations. The smallest amount of space is available to provide maximum storage. It is suitable for large-volume, low-volume cargo storage operations. The forklift can directly enter the cargo lane to access the cargo, which is extremely convenient. Storage rack shelf made by roll forming process is high effeciency produciton rate and safetly operation.


Heavy duty rack upright column CAD drawing

Storage Rack Shelf Metal Forming Machine for Rack Upright Post

Technical Parameters

Storage heavy duty rack shelf upright post roll forming machine

Technical parameters

No.

ITEM

PARAMETER

REMARK

1

MATERIAL

Type

Cold-rolled strip steel, galvanized sheet


T.(mm)

1.0-1.5mm


Material strength

G300 MPA


2

Forming speed   (m/min)

3-8m

Including hole

3

Forming main power   (KW)

7.5KW

FYR

4

Hydraulic power (KW)

15KW

FYR

5

Total Power

                 22.5KW

FYR

6

Voltage

 AC380V,50Hz,3Phase

Customized
