Good quality automatic storage rack shelf roll forming machine form making metal stud and track. Low price and good service.
Supermarket stud and track production line
Roll forming machine for production metal stud and track for rack shelf, pallet stud,upright shelf, rack shelf, metal frame.
Stud and track roll forming machine production line process
Uncoiler straightener 2 in 1 →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack
Layout as below
2 in 1 Uncoiler straightener
1, Type Manual Expansion
1) Passive discharge
2) Coil weight：< 2T
3) Coil inner D.：φ450mm-φ530mm
4) Max. Width.200mm
5) Thickness .0.4-1.6mm
6) Straightener roller :7 pcs
3.1 Max. feeding width:200mm
3.2 Feeding thickess: 0.4-1.6mm
3.3 Motor , 0.85ＫＷ(Yaskawa)
Hydraulic hole punching system
3.1 Function：Hydraulic punch breach
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure：16MPa
3.4 Hydraulic station：15KW（ Hydraulic punch hole/shear use same station）
Main Forming machines

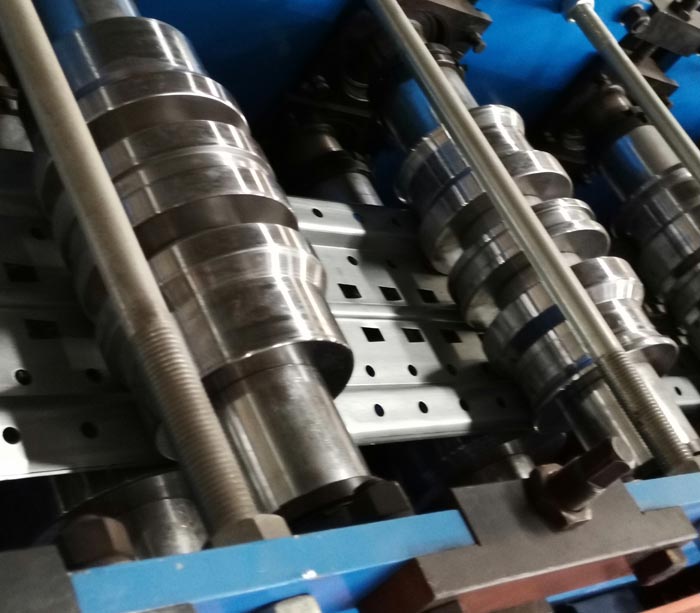

5.1 Forming Roller：20 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 2-8 m/min。
5.4 Roller material：#75，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：7.5KW。
5.6 Main Roller ：￠95mm，45 #。
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Flat collect rack
Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Touch screen: Siemens
Some components are Schneider brand devices.
Devices steel stud and track production line machine list
|3||Hydraulic machine||1||With mould|
|6||Hydraulic machine||1||With mould (2 sets)|
|7||Follow Shear||1||Including knife|
Rack stud and track machine accessories brand
|1||Motor & Reducer||Domestic brands|
|2||The main key bearing||Domestic brands|
|8||Hydraulic system||Domestic brands|
Model and Meaning
Equipment for production storage rackk shelf stud and track.
Different types of rack shelves have different characteristics, a good shelves have the characteristics of perfect assembly, large carrying capacity and strong stability. The shelf stud and track material is made of cold roll steel. The gallery-style shelves are designed to store a large number of similar pallet goods, also called channelless shelves. Pallet shelves are commonly used in places where storage space is expensive, such as frozen warehouses. Suitable for storing large quantities, small variety of goods, batch operations. The smallest amount of space is available to provide maximum storage. It is suitable for large-volume, low-volume cargo storage operations. The forklift can directly enter the cargo lane to access the cargo, which is extremely convenient. Storage rack shelf stud and track made by roll forming process is high efficiency production rate and safety operation.
Storage shelf rack stud and track shelf roll forming machine
Cold-rolled strip steel, galvanized sheet
Forming speed (m/min)
Forming main power (KW)
Hydraulic power (KW)
