Floor Deck Roll Forming Machine

China floor deck roll forming machine manuacturer with cheap price

Product Description

Floor Deck Roll Forming Machine

Item YX-75-268-780

Roll forming machine for production floor deck & building material.

Metal Forming machine for steel floor deck technology detail


1,Technical parameters

1MATERIALTypeCold-rolled strip steel, galvanized
Yield Strength (Mpa)Q235
2Forming product   Width310-914.5mm
3Forming speed   (m/min)2-8mIncluding hole
4  (KW)18 KWFYR
5Hydraulic power   (KW)18.5 KWFYR
6Collect Rack6mFYR
7Voltage AC380V,50Hz,3PCustomized

Floor Deck line process

Uncoiler →Guide device → roll forming machine →shear device (including knife)→ finished product rack

Floor deck machine layout as below

Floor Deck Machine

Design drawing

Floor Deck Drawing

Floor Deck Machine

Roll Forming machine list


1,Type Manual Expansion


1) Passive   discharge

2) Coil weight:<   5T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.1300mm

5) Thickness .0.4-1.8mm

Guide device

Main Forming machines

3.1  Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.

3.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

3.3  Rolling speeding: 2-8 m/min。

3.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
3.5  Motor power:7.5KW。
3.6  Main Roller :¢75mm,45 #。
3.7  Equipment base: 45 # H type using welded steel plate.
3.8  Transmission: chain drive.
3.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Floor Deck Roll Forming Machine

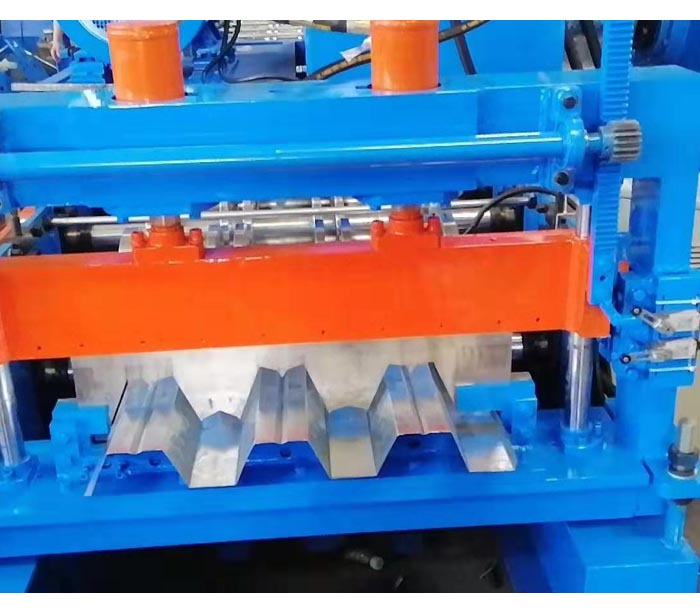

Hydraulic shear for cutting floor deck


Collect Rack

Collect Rack can do automatic flat rack or manual rack

Below photo is automatic collect

Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

(Ⅶ)Machinery main components of the brand

PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.

Devices completed floor deck prodution line

No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Guide device1
3Forming machine1
4Follow Shear1Including knife
5Collect rack1
6Control system1

Floor deck machine accessories brand

1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
4PLC SystemsSiemens
5Low-voltage electricalSchneider
7touch screenSiemens
8Hydraulic systemDomestic brands

Floor deck roll forming machine for mass production construstion material foor deck.

Floor deck name as floor board, also known as profiled steel plate, steel plate, steel floor plate. It was first called the profiled steel plate, which is the collective name for all the steel plates pressed by the plate press.

The floor slab is made of galvanized steel sheet by roll forming, and its cross section is V-shaped, U-shaped, trapezoidal or similar. It is mainly used as a permanent template and can also be selected for other purposes.

The earliest profiled steel plates were mainly used for roof slabs on the factory floor, and later there were profiled steel plates for the floors, which were gradually classified as floor deck.
