Power distribution panel production machine for outdoor/indoor cabinet box

Roll forming machine for producing electrical cabinet enclosure, including distribution panel forming machine, panel box bending.

Product Description

Power distribution panel production machine for outdoor/indoor cabinet box

Roll forming machine for production electrionic cabinet enclosure, including cabinet panel forming machine, panel box bending.


Equipment for outdoor/inddor distribution panel formed photo looking


Power distribution panel production machine for outdoor/indoor cabinet box



1,Technical parameters (Item:YX20-150/200/250/300)


No.ITEMPARAMETERREMARK
1MATERIALTypeCold-rolled strip steel, galvanized sheet
T.(mm)0.8-1.2mm
Yield Strength (Mpa)Q235
2Forming product   Width150,200,250,300mm
3Forming speed   (m/min)2-8mIncluding hole
4Forming main power   (KW)7.5 KWFYR
5Hydraulic power   (KW)18.5 KWFYR
6Bending power (KW)3 KWFYR
7Voltage AC380V,50Hz,3P


Distribution panel production line process

(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

(B) Bending machine with tool

Layout as below

Distribution Box Roll Forming Machine

Cabinet enclosure drawing

Section part distribution box panel Drawing


Distribution Box Roll Forming Machine


Roll Forming machine list


2 in 1 Uncoiler   straightener

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight:<   2T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.400mm

5) Thickness .0.4-1.6mm

6) Straightener roller :7 pcs

7) Power.1.5kw

Power distribution panel production machine for outdoor/indoor cabinet box


Servo Feeder

3.1 Max. feeding width 400mm
3.2  Feeding thickess 0.4-1.6mm

3. 3  Motor , 1.3KW(Yaskawa)


Hydraulic hole punching system

3.1 Function:Hydraulic punch breach  (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure:16MPa
3.4 Hydraulic station:18.5KW( Hydraulic punch hole/shear use same station)


A. Hydraulic punch for the panel gap.

Power distribution panel production machine for outdoor/indoor cabinet box


B.Hydraulic punch for the cable hole

Power distribution panel production machine for outdoor/indoor cabinet box



Guide device



Main Forming machines  (for panel width 150,200,250,300,350mm )


5.1  Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 2-8 m/min。

5.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:7.5KW。
5.6  Main Roller :¢75mm,45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.


Power distribution panel production machine for outdoor/indoor cabinet box


Flat collect rack


(Ⅶ),Box Bending Machine (including mould) 150/200/250/300/350 1 set , Hydraulic power :3kw

Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.


Devices completed electronic distribution panel prodution line


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Servo Feeder1
3Hydraulic   machine1With mould
4Guide device1
5Forming machine1
6Hydraulic   machine1With mould (2 sets)
7Follow Shear1Including knife
8Collect rack1
9Control system1
10Box bending machine1With mould


Power distribution box machine accessories brand

No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands


Product Features

Guarantee of Quality

Superda guarantee distribution box roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.

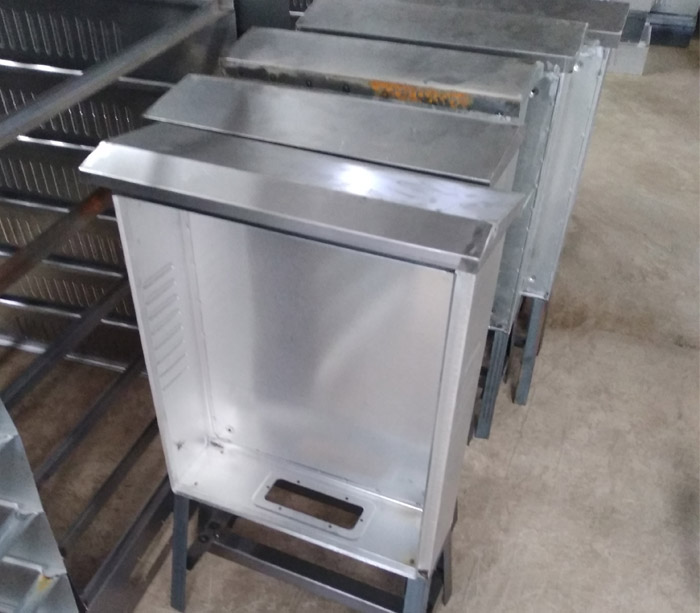

Outdoor using cabinet box with roof top photo

Power distribution panel production machine for outdoor/indoor cabinet box


Outdoor/indoor distribution box with ventilation hole and cable hole photo after formed and bending.

Power distribution panel production machine for outdoor/indoor cabinet box


Power distribution box production advantage

1, Distribution box production line for producing electrical cabinet box IP65 & IP66, Outdoor & Indoor water-proof cabinet enclosure.

2, PLC control system, automatically and easy handle.

3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.


Model and Meaning

Item YX20-150/200/250/300

Distribution box roll forming machine for producing steel box which using electrical industry.

Distribution box application

Power distribution box is widely used in architectural lighting and small power control circuits of hotels, apartments, buildings, ports, stations, airports, warehouses, hospitals, factories and mines, etc. It is suitable for AC 50Hz, AC single-phase 240V, three-phase 450V and In the following, indoor lighting and power distribution lines with currents of 250A or less are used for line overload protection, short circuit protection, and line switching. Power distribution box is suitable for civilian and not need professional technology, it is very easy using and safety.

Welding effect is very smooth adopt roll forming production solution

Power distribution panel production machine for outdoor/indoor cabinet box


Technical Parameters

Metal enclosure box roll forming machine for production different size cabinet

Reference (Item)HeightWidthDepth
YX21-150/200/250/300/350/400200200150
300250150
300250200
300300150
300300200
300400200
400300150
400300200
400400200
400600250
400600300
500400150
500400200
500400250
500500250
600400150
600400200
600400250
600500150
600500200
600500250
600600250
600600300
600800300
700500200
700500250
800600200
800600250
800600300
800600400
800800200
800800300
8001000300
1000600250
1000600300
1000800250
1000800300
1000800400
10001000300
10001200300
1200800300
1200800400
12001000300
