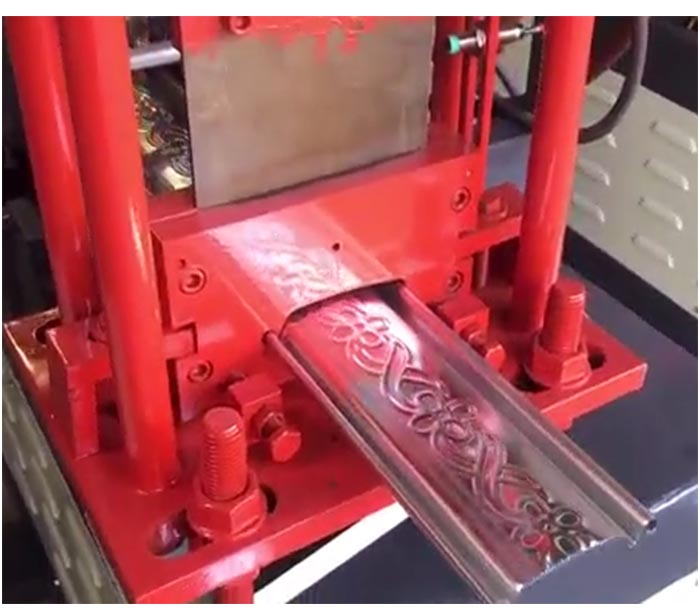

Flower Door Rolling Shutter Roll Forming Machine

3 Style flowers design door rolling shutter roll forming machines for sales & Good price door shutter making machine manufacturers

Product Description

Automatic & Cheap Door Rolling Shutter Roll Forming Machine With 3 Style Flowers Tooling

Roll Forming machine			Door Shutter Forming Machine		Flower Style
	Model		YX100-11.5		Custmized
Para- meter		Roller station		16 Rollers
		Rolled material		The material thickness 0.6-1.0mm, product width 100mm;
		wall board		T.20mm，Precise cutting
		rack		12# steel channel welding
		motor		5.5kw Three phase 380V 50Hz
		mold		The mold uses GR12, fine turning, fine grinding, heat treatment at 55-58 degrees, hard chrome plating, to maintain the smoothness and durability of the mold
		roller		Dia. 42mm
		Bearing		Harbin 6207#
		Electronic control system		Adopt programmable PLC control system, frequency conversion speed regulation, encoder fixed length cut off, accuracy ±1mm;
		cut way		Fully automatic hydraulic shearing
		Hydraulic system		Motor power 2.2kw; oil cylinder Φ80*100; oil tank 80L
		scissors mould		Material Cr12MOV, hardness HRC58-62
		unloading rack		Manual , Max. 1T
		Production speed		0-12m/min
		Discharge		Automatic
		Mechine Dimensions		5.3m0.6m1.5m
		Mechanical weight		1.8T
		Production		45 days

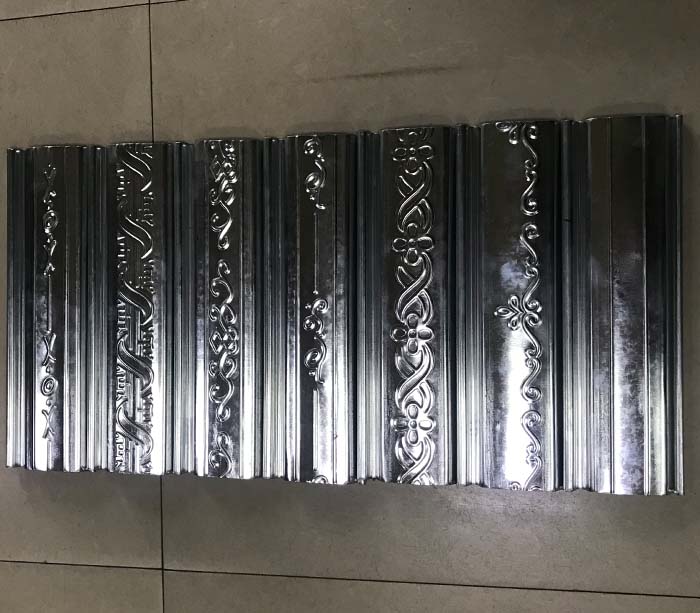

Flowers Door Rolling Shutter Roll Forming Machine For Sales

Flower Door Rolling Shutter Roll Forming Machine
