Solar panel structure roll forming machine

Roll forming machine for producing solar panel mounting bracket, including solar photovoltaic bracket, solar pv support machine

Product Description

Solar panel structure mounting bracket roll forming machine production line

Roll forming machine for production solar bracket named as solar pv bracket, solar photovoltaic bracket.


Ⅰ,Roll forming machine for solar mounting bracket



1,Technical parameters (Item, YX50-300)


No.ITEMPARAMETERREMARK
1MATERIALTypeCold-rolled strip steel, galvanized sheet
T.(mm)2.0mm
Yield Strength (Mpa)Q235-300
2Forming product   Width50mm
3Forming speed   (m/min)10-18m
4Forming main power   (KW)18.5 KWFYR
5Hydraulic power   (KW)18.5 KWFYR
6Voltage AC380V,50Hz,3P


Ⅱ, Solar bracket production line process

(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack


Layout as below

Solar bracket forming machine

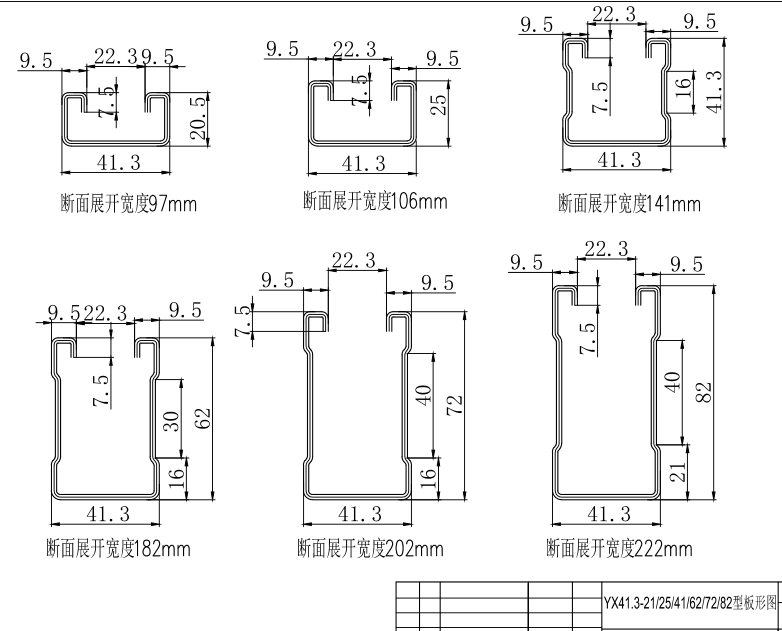

Ⅲ,Solar mounting bracket drawing

Solar panel mounting bracket profile drawing

Solar panel structure roll forming machine




Ⅲ, Roll Forming machine list


(Ⅰ), 2 in 1 Uncoiler   straightener

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight:<   2T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.400mm

5) Thickness .0.4-1.6mm

6) Straightener roller :7 pcs

8) Power.1.5kw

Solar bracket forming machine


(Ⅱ),Servo Feeder
3.1 Max. feeding width 400mm
3.2  Feeding thickess 0.4-1.6mm

3. 3  Motor , 1.3KW(Yaskawa)


(Ⅲ), Hydraulic hole punching system

3.1 Function:Hydraulic punch breach  (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure:16MPa
3.4 Hydraulic station:18.5KW( Hydraulic punch hole/shear use same station)

Solar panel structure roll forming machine

(Ⅳ)Guide device



(Ⅴ)Main Forming machines

5.1  Forming Roller:16 stations,and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 10-18 m/min。

5.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
5.5  Motor power:18.5KW。
5.6  Main Roller :¢140mm,45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

Solar panel structure roll forming machine


(Ⅵ),Flat collect rack


(Ⅶ),Cutting part:

Cutting after forming: cutting the length according to your needs

Cutting operation: the main machine will be stop automatic, then cutting,And the machine keeps working after cutting

The model of calculate the length: automatic to calculate

(Ⅷ),Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.



Ⅴ,Devices completed prodution line


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Servo Feeder1
3Hydraulic   machine1With mould
4Guide device1
5Forming machine1
6Hydraulic   machine1With mould (2 sets)
7Follow Shear1Including knife
8Collect rack1
9Control system1


Ⅵ, Machine accessories brand

No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands




Product Features

Guarantee of Quality

Superda guarantee solar bracket roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.


Solar bracket roll forming machine advantage

1, Solar bracket production line for producing good quality solar pv supports, high efficiency.

2, PLC control system, automatically and easy handle.

3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.

4,Tracking cutting system with Cr12 Cutting blade.

Model and Meaning

Item YX50-300

Solar mounting bracket  roll forming machine for producing solar industry support using bracket.

Solar bracket application

Solar bracket allows the components to be angled according to different regions, so that the local solar energy resources can be fully utilized to achieve the maximum power generation efficiency of the solar modules. At the same time, the detailed analysis and practice of the connection mode, material selection and load analysis of the PV module are carried out, so that it has good physical properties such as earthquake resistance, wind resistance, snow pressure resistance and corrosion resistance, so that the PV module is applied more. A wide range of areas.

Main material: Q195 Q195L Q235 Q235B Q345B, etc.


Technical Parameters

Solar mounting bracket roll forming machine for production different size solar pv support

Main technical parameter:

quickly change the type of roll forming machine

  Raw material thickness:2.5mm

Forming steps: 26 steps

  Roller material: bearing steel after hardening

  Roller bearing diameter : Φ90mm

  Bearing material: 45# steel (hardening and tempering)

  Bottom sheet: 36# H-section steel

  Main machine power: 18.5 KW

  Hydraulic pressure: 20 MPa

  Electronic control system: PLC computer control

  Hydraulic cutter material: Cr12

  Length error: ± 2mm
