Floor Deck Machine for Construction Material

China floor deck machine for producing steel building material

Product Description

Floor Deck Machine


Item YX-75-310-914.5

Roll forming machine for production floor deck & building material.


Metal Forming machine for steel floor deck technology detail



1,Technical parameters (Item:YX75-310-914.5)


No.ITEMPARAMETERREMARK
1MATERIALTypeCold-rolled strip steel, galvanized sheet
T.(mm)0.6-1.8mm
Yield Strength (Mpa)Q235
2Forming product   Width310-914.5mm
3Forming speed   (m/min)2-8mIncluding hole
4  (KW)18 KWFYR
5Hydraulic power   (KW)18.5 KWFYR
6Collect Rack6mFYR
7Voltage AC380V,50Hz,3PCustomized


Floor Deck line process

Uncoiler →Guide device → roll forming machine →shear device (including knife)→ finished product rack


Floor deck machine layout as below


Floor Deck Machine

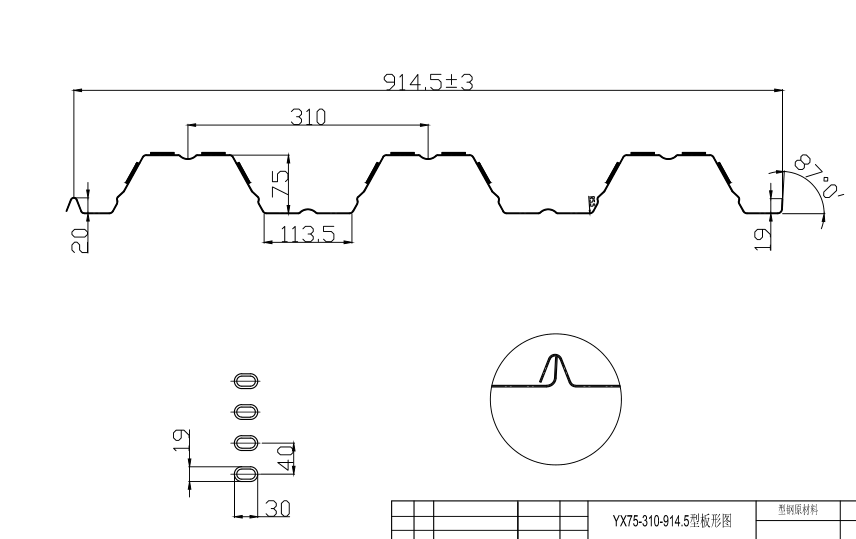

Design drawing

Floor Deck Drawing


Floor Deck Machine




Roll Forming machine list


Uncoiler

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight:<   5T

3) Coil inner D.:φ450mm-φ530mm

4) Max. Width.1300mm

5) Thickness .0.4-1.8mm



Guide device


Main Forming machines

3.1  Forming Roller:20 stations,and add Rub-roll, To make sure the surface profile no scratches.

3.2  Side Panel:T.18mm ,A3 steel   Heavy duty 。

3.3  Rolling speeding: 2-8 m/min。

3.4  Roller material:GCr15,overall quenching, hardness HRC56-62 ℃.
3.5  Motor power:7.5KW。
3.6  Main Roller :¢75mm,45 #。
3.7  Equipment base: 45 # H type using welded steel plate.
3.8  Transmission: chain drive.
3.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.


Floor Deck Machine


Hydraulic shear for cutting floor deck



Collect Rack

Collect Rack can do automatic flat rack or manual rack

Below photo is automatic collect ra


Floor Deck Machine

Electrical control system

The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

(Ⅶ)

Machinery main components of the brand

PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.


Devices completed floor deck prodution line


No.Machine nameQTYREMARK
1Uncoiler   straightener1
2Guide device1
3Forming machine1
4Follow Shear1Including knife
5Collect rack1
6Control system1


Floor deck machine accessories brand

No.Namemanufacturer
1Motor & ReducerDomestic brands
2The main key bearingDomestic brands
3InverterShilin
4PLC SystemsSiemens
5Low-voltage electricalSchneider
6EncoderOmron
7touch screenSiemens
8Hydraulic systemDomestic brands




Product Features

Guarantee of Quality

Superda guarantee floor deck roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.


Terms of Payment

By TT, 30%  in advance, 70% before delivery.



Time of Shipment

60 days after received deposit





Model and Meaning

Model: YX-75-310-914.5

Floor deck roll forming machine for mass production construstion material foor deck.

Floor deck name as floor board, also known as profiled steel plate, steel plate, steel floor plate. It was first called the profiled steel plate, which is the collective name for all the steel plates pressed by the plate press.

The floor slab is made of galvanized steel sheet by roll forming, and its cross section is V-shaped, U-shaped, trapezoidal or similar. It is mainly used as a permanent template and can also be selected for other purposes.

The earliest profiled steel plates were mainly used for roof slabs on the factory floor, and later there were profiled steel plates for the floors, which were gradually classified as floor deck.

The equipment for producing floor deck machinery name as floor deck roll forming machine & floor deck sheet machine & steel floor deck roll forming line.

Technical Parameters

NoItemParameterRemark
1Suitable MaterialTypegalvanized steel
Width(mm)Thickness(mm)
3100.8-1.2
914.5
0.8-1.2
Yield Strength(Mpa)230-350MPa
2Production Speed(m/min)about 20depend on design
3Roller Stations20-36
depend design
4Roller Material45with quench treatment
5Cutting ModelHydraulic Cutting
6Power sourceType380V/3PH/50HZcustmizied
Total PowerAbout 38KWdepend on design
7 Dimension16000*1800*1500 depend on design
